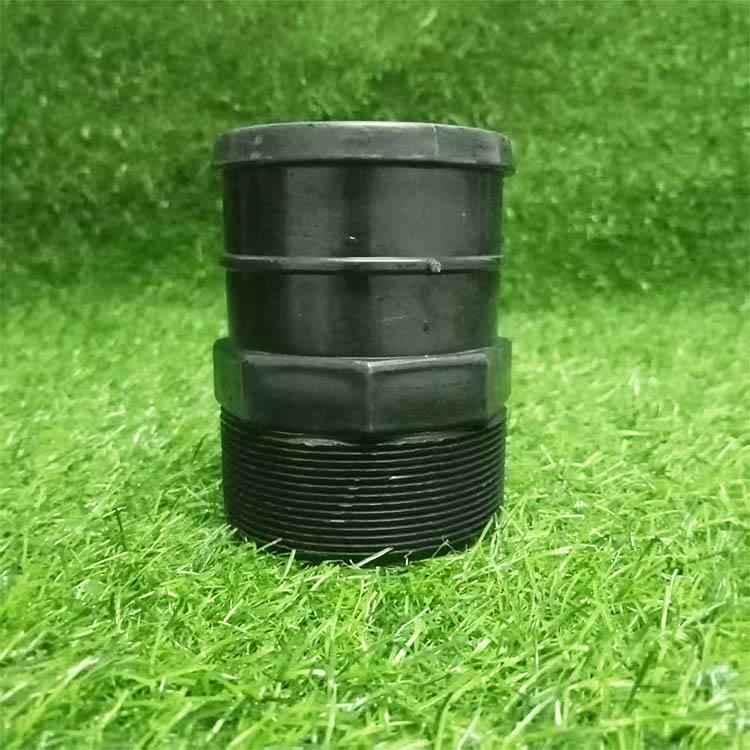

Terminal He 3/4 Polipropileno

Our TERMINAL HE 3/4 POLIPROPILENO the whole coupling in one injection mold without split assembly seams, using 100% aging-resistant polyethylene material instead of cheap recycled plastic. The average wall thickness reaches 6.2mm, far thicker than market ordinary 4–5mm thin-wall fittings. It withstands farm vehicle rolling, heavy dropping and collision during field transport. The material resists ultraviolet radiation, dilute acid/alkali fertilizer liquid and livestock disinfection solution. Lab heat oven aging test (80℃, 168h) shows no cracking, powdering or deformation. It meets GB/T20201 thermal stability index, performing steadily under harsh open-air tropical, subtropical climate for years.

Dual-end composite structure

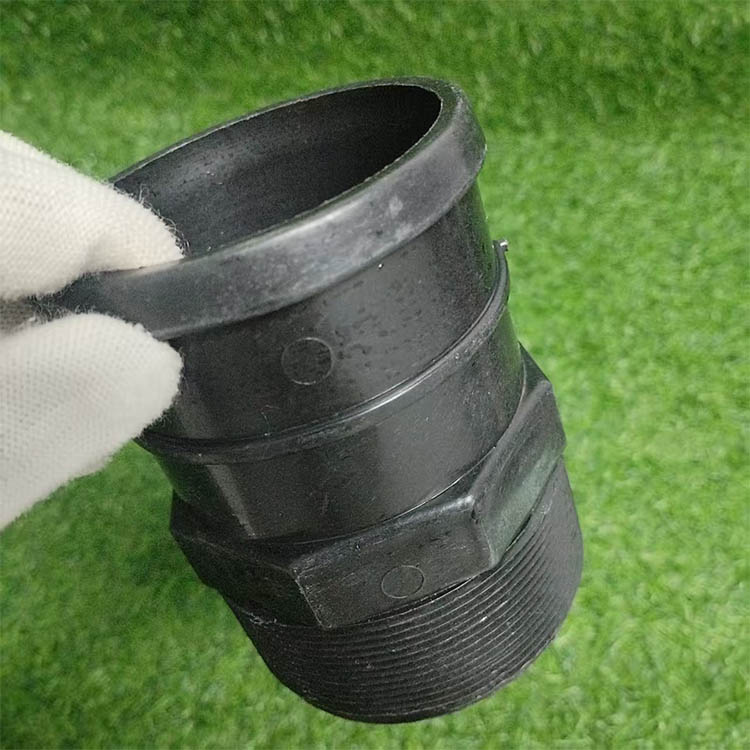

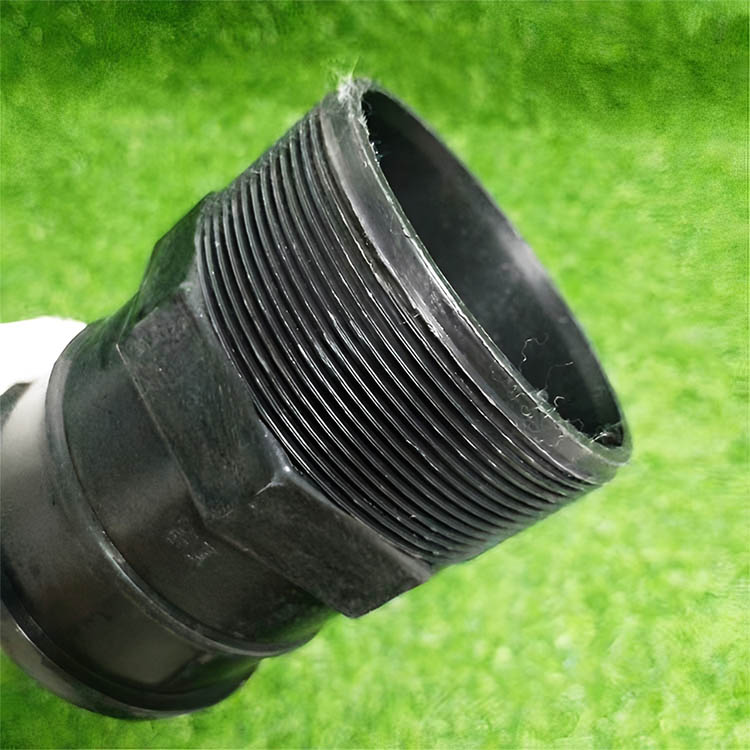

This TERMINAL HE 3/4 POLIPROPILENO adopt two different connection ends for flexible matching. The 90mm socket interior has dual annular water-blocking ribs; when the DN90 PE soft belt is fully inserted, double layers squeeze to lock the pipe tightly. The male thread end is precision machined standard tooth profile, perfectly matched with DN90 female thread valves, tees, water outlets and hard pipe adapters. The middle integrated hexagonal platform lets spanners grip firmly without slipping during tightening. It supports two common connection modes: extending soft water belts, or transitioning soft hoses to metal/plastic threaded accessories. One single coupling covers pipeline extension, main line diversion and equipment port connection across most irrigation projects.

Easy installation

Field setup never requires hot melt machines, glue or extra clamping fixtures. Workers only push the PE soft hose fully into the socket to finish the socket joint. For threaded ends, a regular open-end spanner clamps the hexagonal middle section to twist and lock matched threaded parts. Comparing with hot-melt PE fittings, we eliminate heating and cooling waiting time. For large-scale greenhouse or farm pipeline rolling out, installation speed improves over 60%. Later maintenance and pipeline layout adjustment are simple too; intact couplings can be detached and reused for multiple project cycles.

Standard universal DN90 size

Our TERMINAL HE 3/4 POLIPROPILENO suits over 95% popular 90mm PE irrigation water belts globally for various overseas projects:

1.Nigeria big cattle and sheep farms

We use these fittings for pen water lines and manure drain pipes. They hold up well against waste and sanitizer corrosion. The wide 90mm lines move enough water to serve thousands of animals drinking at once.

2.Big Australian ranch pasture spray irrigation

Long runs of PE soft hose make up the main water lines across wide grasslands. This thick-wall fitting takes knocks and heavy vehicle rolling without splitting or leaking, letting the system run pressurized water nonstop around the clock.

3.Mexico tropical fruit and vegetable greenhouses

Made from brand-new UV-stable HDPE, the parts won’t turn brittle under harsh strong sun typical of tropical areas. Farms often rearrange their water and fertilizer lines, and these couplings can be taken apart and reused many times to cut down repeated replacement costs.

Certification & Order Support

We supply third-party test documents following GB/T20201-2006, including hydraulic pressure and aging test papers you can use for customs clearance. We accept small trial runs starting at 500 pieces, and our daily output hits 35,000 units so we can rush out big full-container project orders quickly. If you are interested in our TERMINAL HE 3/4 POLIPROPILENO, please feel free to contact us at any time.
