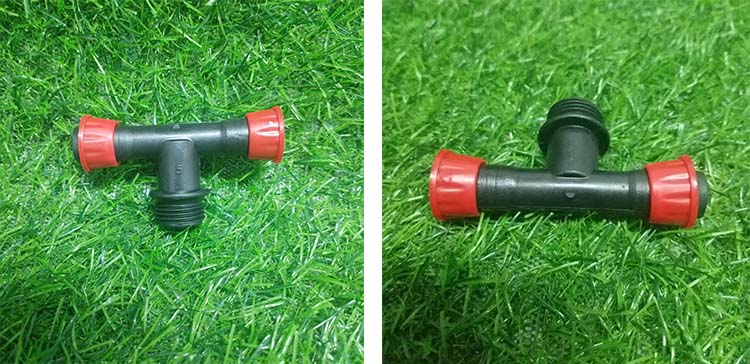

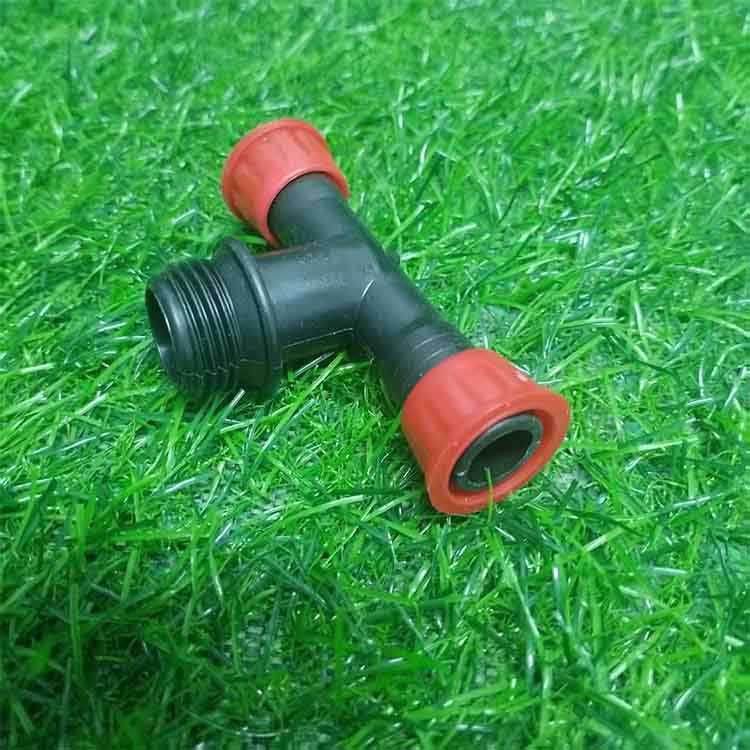

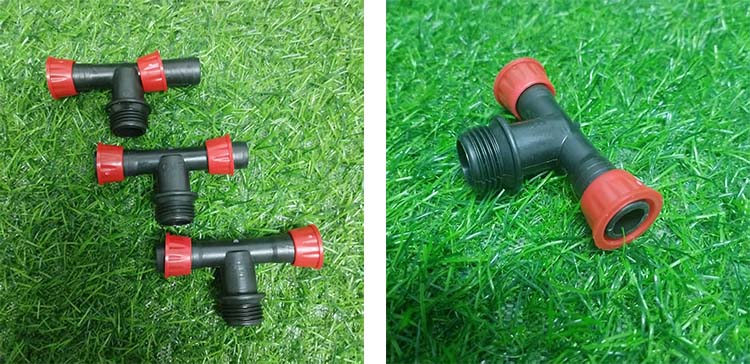

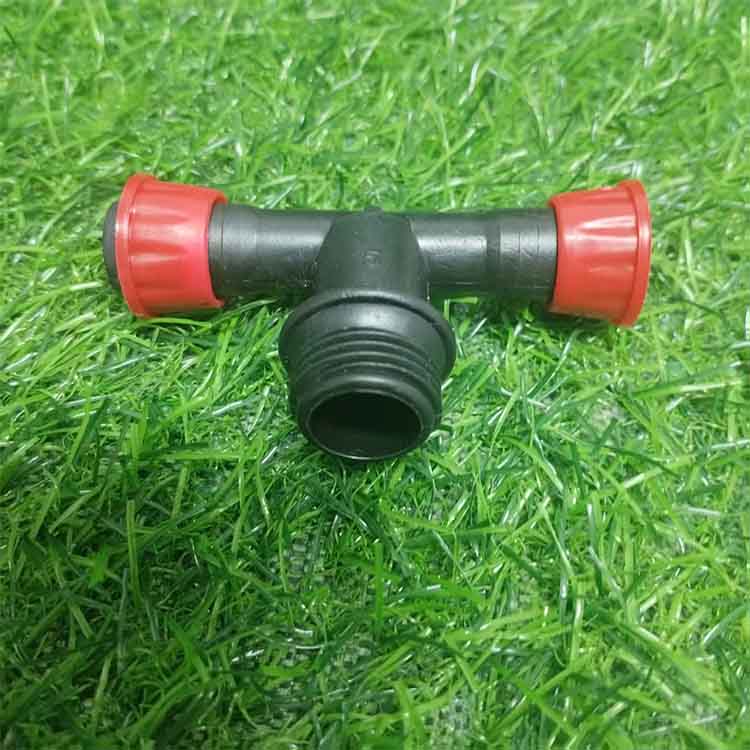

T-shaped Micro-irrigation Coupling

1.Physical lock, say goodbye to bursting pipes

T-shaped micro ignition coupling adopts the pull ring/lock catch design.Traditional barbed joints are prone to "peeling" and spraying water under high temperatures (softening of pipes) or high water pressure in summer.After inserting the pipeline, our product, it is locked physically by rotating the ring catch. The pressure bearing capacity is 2-3 times higher than that of ordinary joints, and even the high pressure of tap water can be as stable as Mount Tai.

2.Outer thread design, directly connected to the nozzle

The top of the three-way valve comes with a standard external thread interface (commonly 1/2 "or 3/4"), which allows for direct tightening of various internal thread micro nozzles, atomizing nozzles, or droppers without the need for a conversion joint.Not only is the installation simpler, but it also reduces the number of water leakage points.

3.Easy installation and disassembly without damaging the pipe

No hot water immersion: No need to push the pipe into the barb with effort, just insert the lock and gently twist it.

Reusable: During maintenance or winter storage, the pipe can be removed by turning the lock buckle, and both the joint and the pipe are undamaged.

4.UV resistant native material

The T-shaped micro propagation coupling is made of high-strength polypropylene (PP) material with added UV resistant additives. Long term exposure to scorching sun or cold and humid outdoor environments can still maintain flexibility and prevent brittleness, with a service life of up to 3-5 years or more.

Product usage instructions

Thread the PE hose through the locking rings on both sides of the tee.

Fully insert the tube into the inner core of the T-shaped micro propagation coupling.

Pull back and rotate the tightening ring until the pipe is firmly clamped.

Screw in the required sprinkler or adapter onto the outer thread interface at the top.

Applicable scenarios

Landscape: Lawn irrigation, color block seedling atomization cooling.

Modern agriculture: greenhouse vegetable irrigation, orchard drip irrigation system main branch.

Home gardening: places with high requirements for system aesthetics and reliability, such as terrace gardens and vertical greening.
