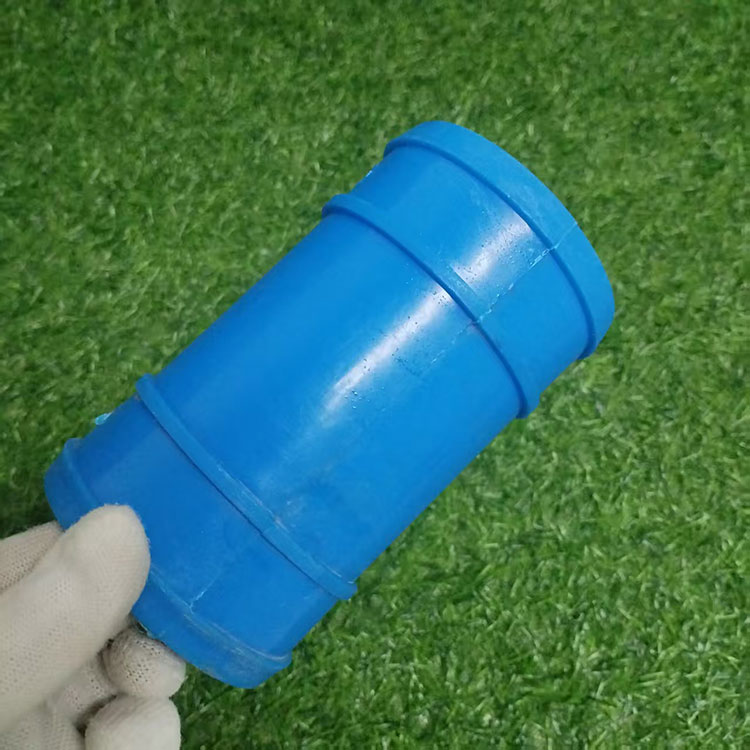

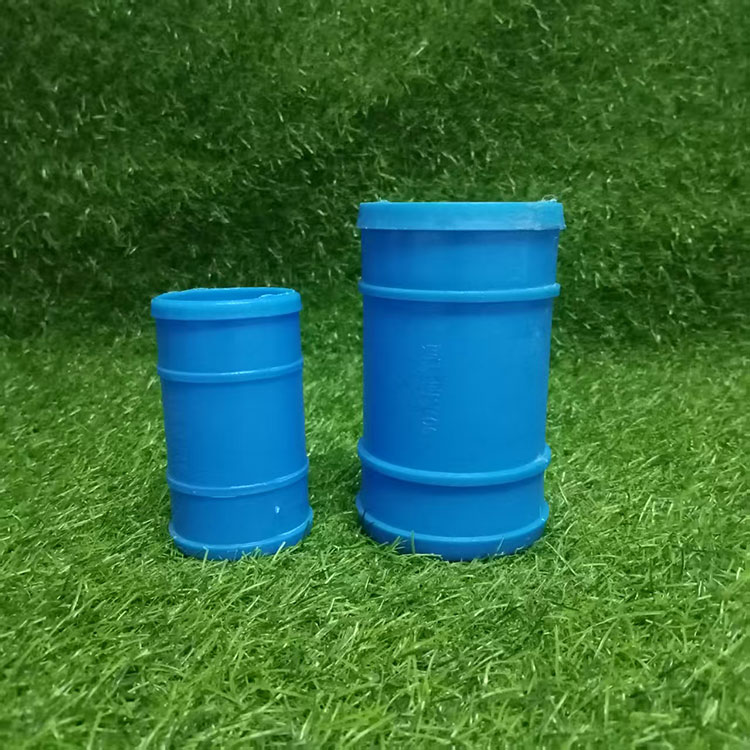

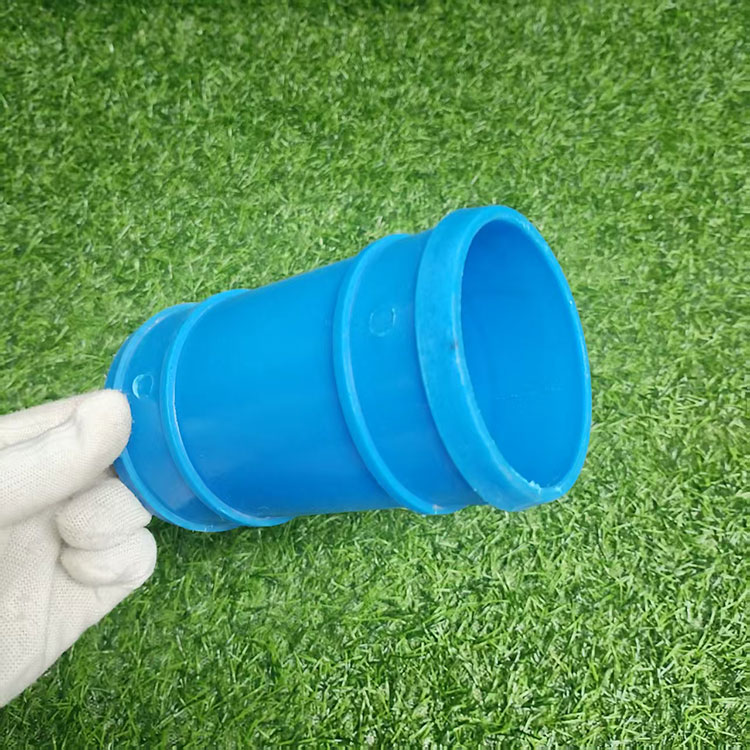

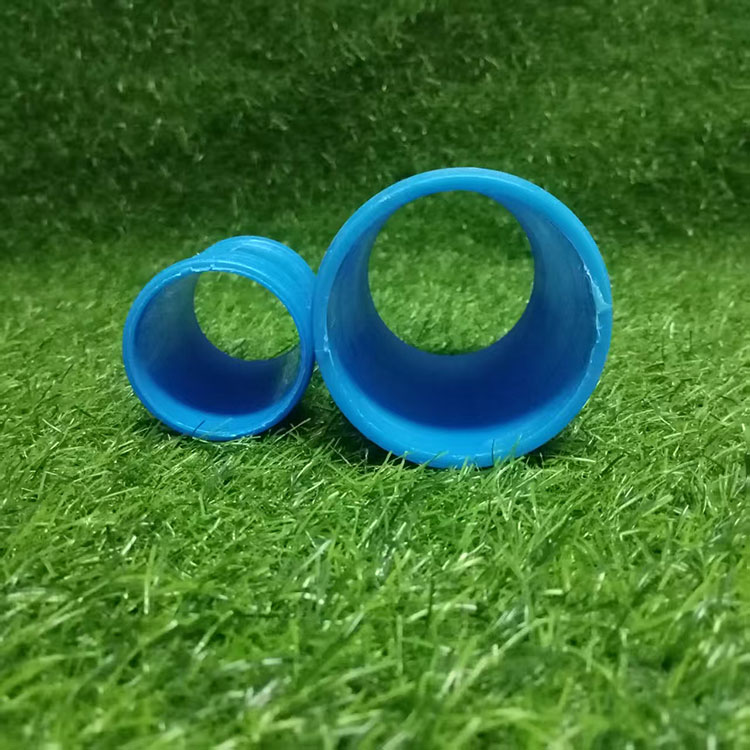

PVC Pipe Connector Straight Joint

This PVC Pipe Connector Straight Joint connects matching-size irrigation pipes to build all kinds of water delivery pipelines. It creates tight seals to avoid leakage and maintain stable water pressure, ensuring reliable water supply for farm crops.Easy for farmers to install on-site for field and greenhouse drip irrigation, helping cut later maintenance costs.

Features:

This PVC Pipe Connector Straight Joint is Made of high-quality eco-friendly PVC material, all fittings are produced in line with standard specifications.

Lightweight with excellent compression resistance, the products enjoy a long service life.

Smooth inner bore effectively cuts water flow resistance. Thanks to compact structure, these fittings fit tightly together to eliminate leakage trouble.

Low Temperature Resistance，Regular working range is 0℃ ~ +45℃. Buried pipes can withstand low temperature down to -10℃.

Excellent cost performance, this PVC Pipe Connector Straight Joint is Made from low-cost PVC raw material, these straight joints are much more affordable than copper or brass fittings, a cost-effective choice for water supply and irrigation projects.

Product use:

Our This PVC Pipe Connector Straight Joint work great for all kinds of water piping jobs: farm irrigation, home indoor water supply and drain lines, greenhouse hydroponics, fish tank recirculation, plus DIY home pipe repairs.

Product Parameters:

Product material	PVC
Product color	Blue
Function	Connect the water supply pipe
Connection method	pipe fitting and pipe fitting bonding
Specification (inner diameter)	20mm 25mm 32mm 40mm 50mm 63mm 75mm 90mm 110mm 125mm 160mm

Pressure Resistance Test

Random samples from each batch go through hydraulic pressure test. Our PVC straight joint withstands 1.5× nominal working pressure without crack or leakage, fully fit common irrigation pipeline pressure

requirements.

Installation Instructions

Apply adhesive evenly on the outer wall of the pipe and inner socket of the fitting, insert the pipe within 1 minute and complete full installation within 15 minutes.

Initial curing finishes in 2 hours. To guarantee reliable sealing, do not feed water into the pipeline until 24 hours later.
