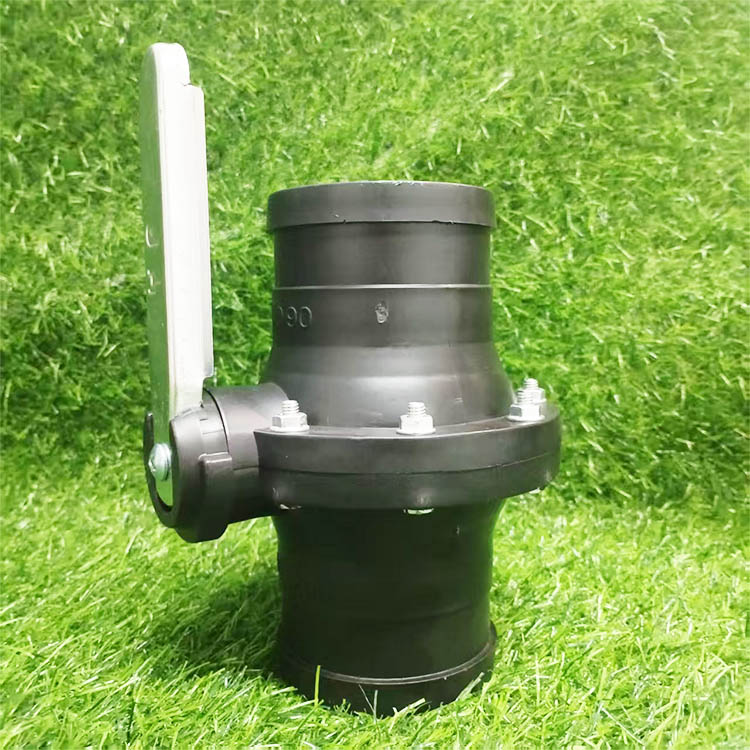

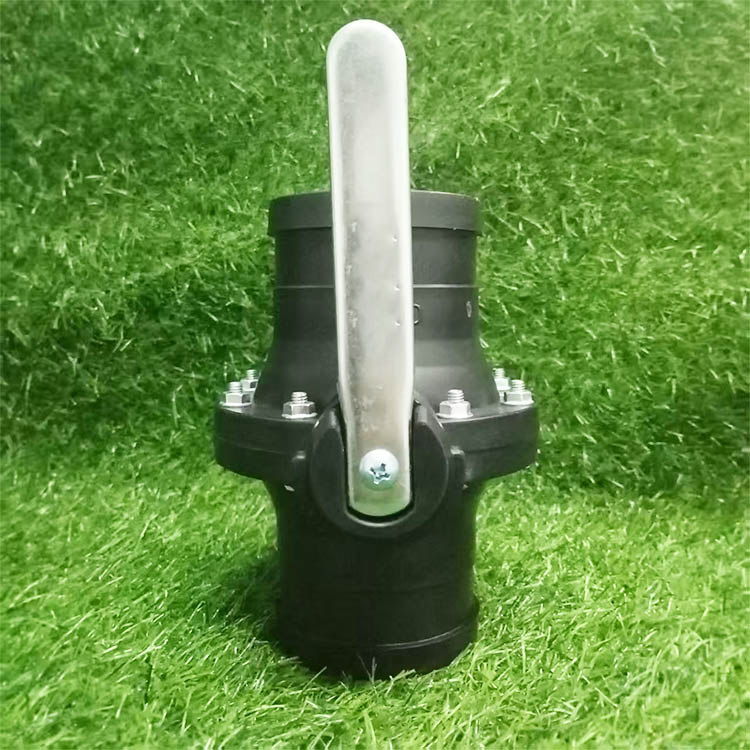

90mm Irrigation Ball Valve

The 90mm Irrigation Ball Valve is a full-bore quarter-turn valve designed for agricultural, greenhouse, and landscape irrigation systems. With DN90 size, PN16 pressure rating, and a durable PVC-U body, it provides reliable shutoff, low pressure loss, and long-term corrosion resistance for demanding water-control applications.

Send Inquiry

Product Description

The 90mm Irrigation Ball Valve is designed for medium-to-large irrigation pipelines, including farmland irrigation, drip irrigation, sprinkler systems, and landscape water management.

Featuring a full-bore ball design, the valve allows water to flow through with minimal restriction, reducing pressure loss and improving irrigation efficiency. The quarter-turn handle enables quick opening and closing, providing convenient manual control for irrigation zones.

Manufactured from high-quality PVC-U material, the valve offers excellent resistance to corrosion, scaling, fertilizers, and common agricultural chemicals, making it suitable for long-term outdoor and agricultural applications.

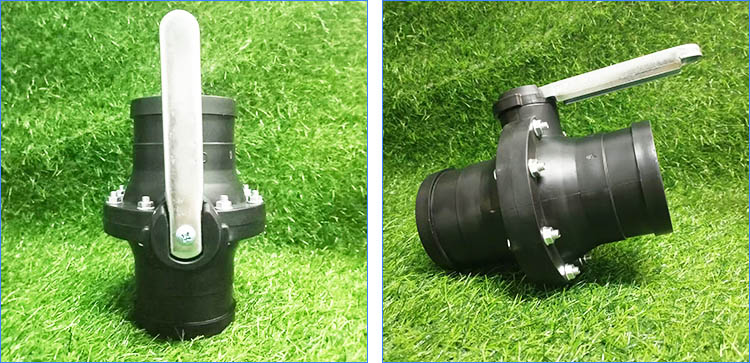

90mm Irrigation Ball Valve

Key Features

Full-Bore Flow Design

The internal passage matches the pipe diameter, ensuring high flow capacity and reducing energy loss caused by pressure drop.

Quarter-Turn Operation

A 90° handle rotation provides fast switching between full open and reliable shutoff.

Durable PVC-U Construction

Resistant to rust, corrosion, and chemical damage, offering longer service life compared with traditional metal valves.

Reliable Sealing Performance

PTFE and EPDM sealing components provide leak-tight shutoff and stable operation under PN16 pressure conditions.

Automation Compatible

The valve can be equipped with electric or pneumatic actuators for automated irrigation control systems.

Technical Specifications

Parameter	Specification
Product Name	90mm Irrigation Ball Valve
Nominal Diameter	DN90 / 90 mm (≈ 3.54")
Body Material	PVC-U (unplasticized polyvinyl chloride)
Ball Material	PVC-U or CPVC, precision machined
Seat / Seal Material	PTFE + EPDM double seal
Handle	Reinforced lever (PP / ABS), optional gear unit
Connection Type	Solvent-weld socket (BS / EN / ASTM), flanged optional
Port Type	Full bore (full port)
Pressure Rating	PN16 (16 bar / 232 psi) at 20 °C
Working Temperature	0 °C to 60 °C
Operation	Quarter-turn (90°), manual or actuated
Standards	ISO, EN, ASTM compatible
Color	Grey / Green / Blue (order-dependent)

Applications

The 90mm Irrigation Ball Valve is widely used in:

Agricultural irrigation mainlines and sub-main pipelines

Greenhouse fertigation systems

Drip and sprinkler irrigation networks

Landscape and turf irrigation projects

Industrial water distribution systems

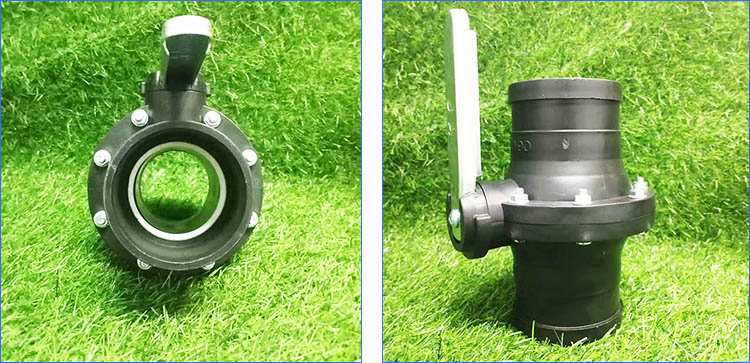

90mm Irrigation Ball Valve

Why Choose Shuoxin 90mm Irrigation Ball Valve

As a professional agricultural equipment manufacturer, Shuoxin Machinery provides reliable irrigation valve solutions for global agricultural and water management projects.

Key advantages include:

High-quality PVC-U material for long service life

Full-bore design for efficient water flow

Stable sealing performance with low maintenance requirements

OEM customization and bulk supply support

Suitable for distributors, contractors, and irrigation projects worldwide

Order 90mm Irrigation Ball Valve

Shuoxin 90mm Irrigation Ball Valve is available in solvent-weld, flanged, and actuator-ready configurations. Contact us for wholesale pricing, customized solutions, and project support.
