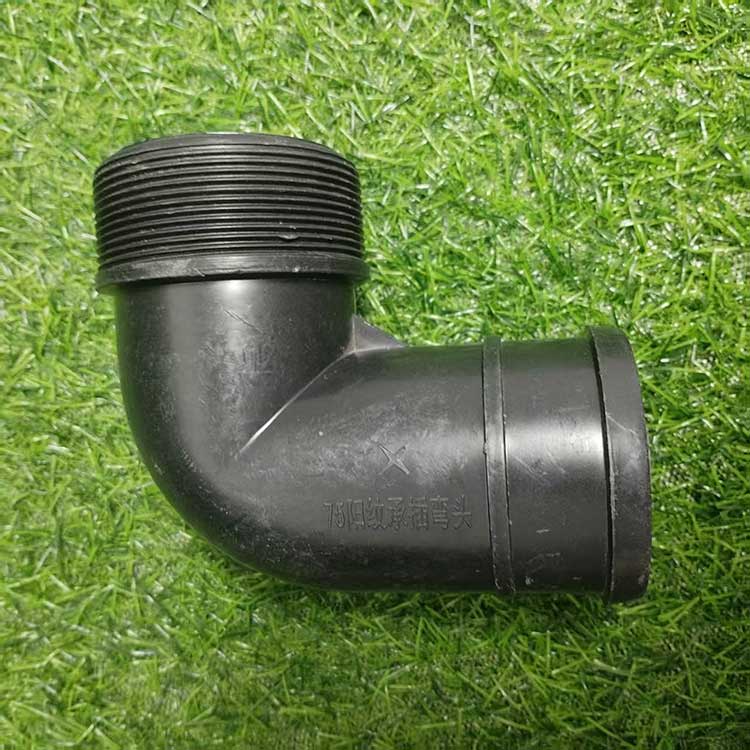

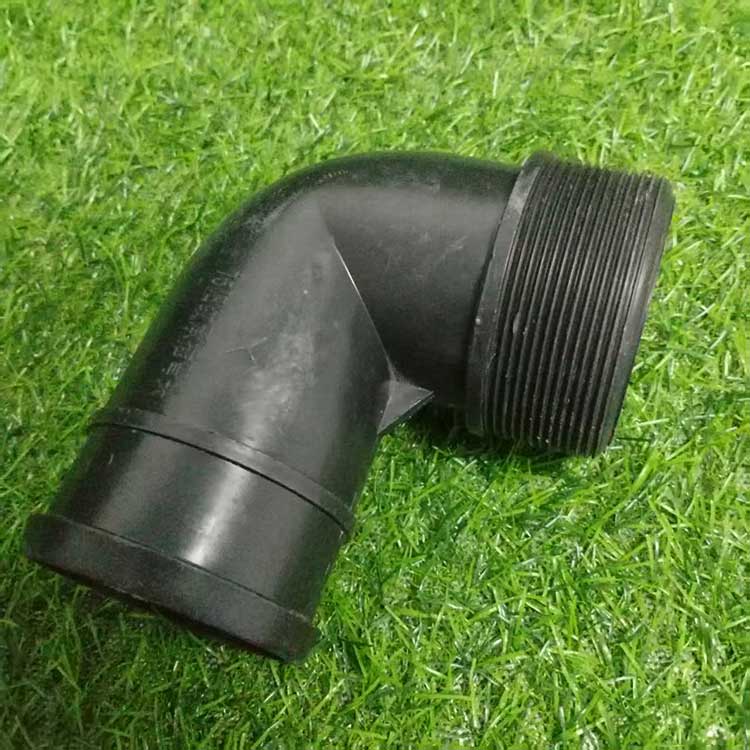

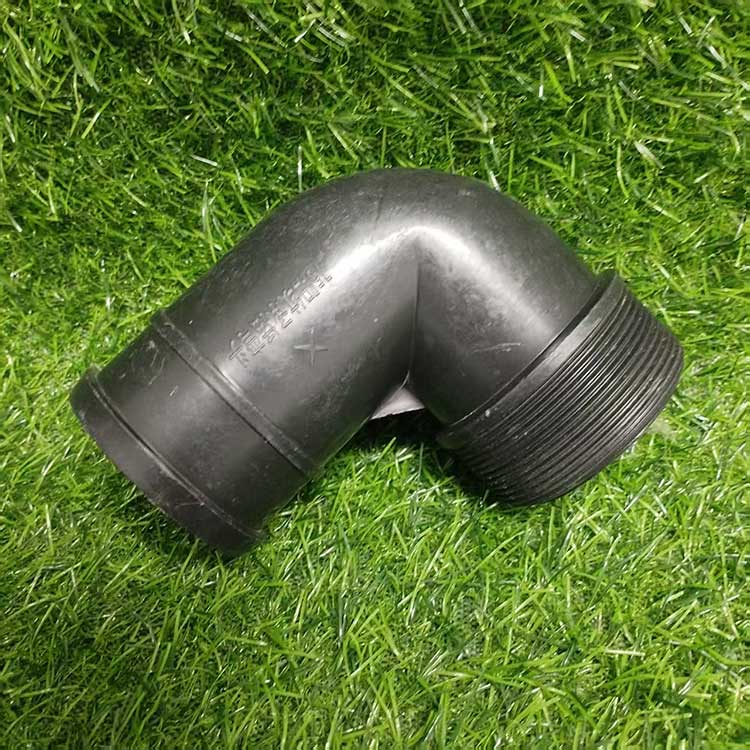

75mm Irrigation Pipe Elbow

This 75mm irrigation pipe elbow fits all kinds of terrain for irrigation. It features great pressure resistance to keep the system running steadily, and will not crack or deform even after long-term use.

Common Materials

We provide 75mm irrigation elbows with many material options. HDPE stands out among all the materials, it is the most popular option. Durable, leak-proof and highly pressure-resistant.

UPVC is another popular material for irrigation elbows. Lightweight and cost-effective, it works well for irrigation on farmland and in orchards. Besides, polypropylene (PP) is also available, featuring excellent anti-aging and UV resistance

Our 75mm irrigation pipe elbows are available in HDPE and UPVC materials. Choose according to your actual needs.

How to Install

UPVC Socket Elbow (Glued Connection)

1.Cut the pipe straight, then clear away burrs and dirt on the pipe and fitting.

2.Spread PVC glue evenly on the outside of the pipe and inside the elbow socket.

3.Push the pipe all the way in, and twist it a little to get a firm seal.

4.Hold it steady for 30 seconds to set.

5.Wait 2 to 4 hours for the glue to fully dry before using the pipe.

HDPE Compression Elbow (Push-in Connection)

1.Cut the HDPE pipe flat, and smooth off rough edges inside and outside.

2.Loosen the nut, take out the rubber ring, and slide both onto the pipe.

3.Push the pipe into the elbow until it hits the stopper inside.

4.Tighten the nut by hand first, then use a wrench to turn it another 1 to 2 times.

Threaded Elbow

1.Wind PTFE tape clockwise around the male thread to stop water leaks.

2.Screw the elbow onto the matching part by hand first.

3.Tighten it gently with a wrench. Do not over-twist, or you will damage the threads.

Please do not hesitate to contact us regarding your inquiries or orders for 75mm irrigation pipe elbow and other fittings. We will provide tailored solutions to meet your requirements.
