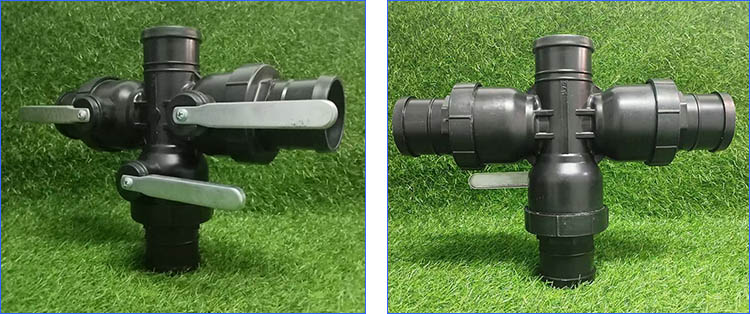

75mm 4-Way Irrigation Valve Manifold

The Shuoxin 75mm 4-Way Irrigation Valve Manifold is a cross-shaped polypropylene compression fitting designed to channel water from a single main inlet into three irrigation branches for irrigation zoning control. Integrated ball valves regulate flow to these separate zones. Connected to PE and HDPE pipes by barbed compression coupling, this manifold is manufactured with reference to applicable ISO 14236 and GB/T 13663 requirements. It serves as a central flow control unit for drip irrigation, landscape watering, farm crop irrigation and large turf water distribution systems.

The manifold is designed for outdoor irrigation systems requiring stable flow distribution and reliable pipe connections. PP-H homopolymer construction provides good resistance to creep, while EPDM sealing rings and barbed compression connections support long-term joint stability.

Product Specifications

PP-H Construction for Outdoor Irrigation

This Shuoxin 75mm 4-Way Irrigation Valve Manifold adopts PP-H homopolymer raw material, delivering excellent creep resistance to maintain stable performance under outdoor temperature changes. It is engineered to reduce slow material deformation under sustained pressure and high field temperatures, helping maintain stable sealing performance over extended outdoor use. Material certificates can be provided upon request to verify raw material grade.

Zoned Irrigation Flow Control

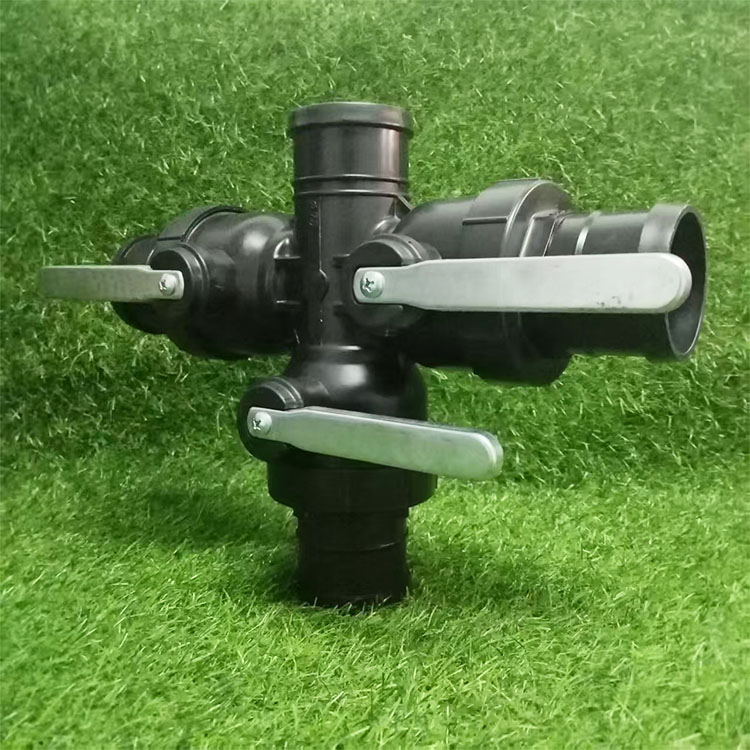

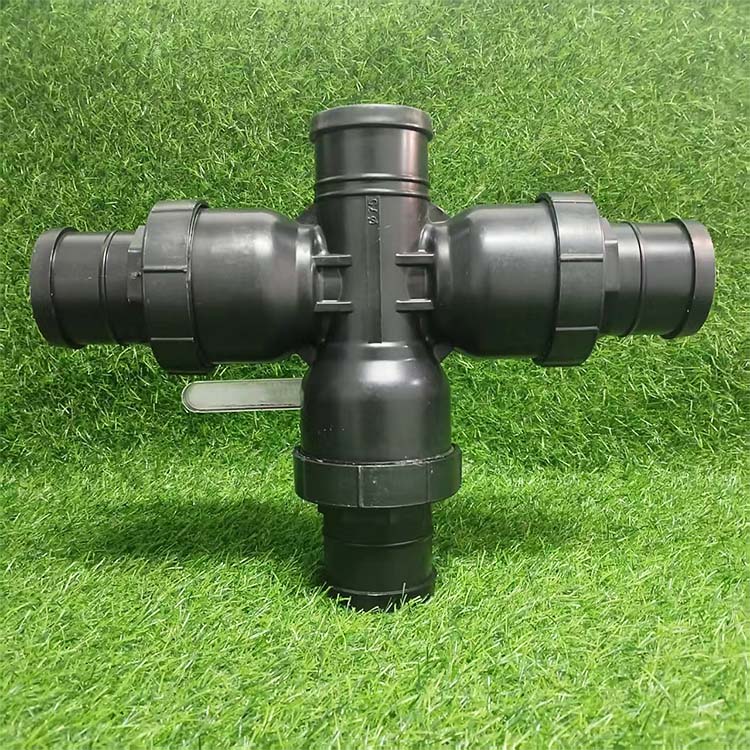

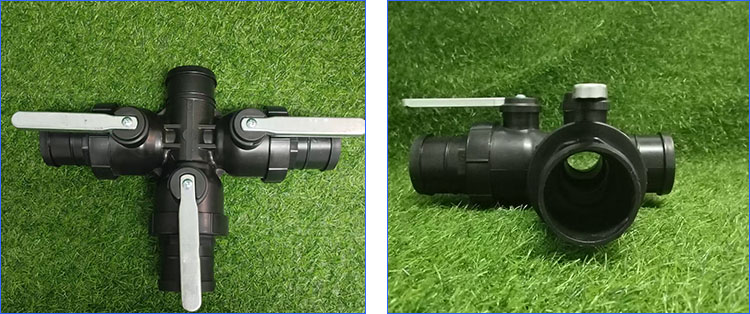

This cross-shaped Shuoxin manifold distributes water from one main inlet to three irrigation branches for zoned water management, with built-in ball valves to control branch flow. Each branch can be opened or closed independently, allowing operators to manage individual irrigation zones from a single manifold. This zoning control brings flexible water management for mixed planting areas, segmented turf zones and multi-section landscape projects, helping optimize water usage for different crop or vegetation requirements.

Compression Connection & Configuration

Our cross-shaped Shuoxin irrigation manifold covers DN20 to DN110 sizes to match different pipeline layouts. It adopts barbed spigot ends for secure assembly with PE/HDPE tubing. The sealing O-ring uses EPDM as standard, with NBR as an optional alternative. The internal ball core is made of polished POM, enabling smooth operation and reliable shut-off performance. The whole product is manufactured with reference to applicable ISO 14236, GB/T 13663 and DIN 8076 requirements.

Applications

Agricultural Irrigation

Drip Irrigation

Golf Courses

Landscape Irrigation

Turf Management

Field Application

A 30-hectare golf irrigation project in Hainan used Shuoxin 75mm 4-Way Irrigation Valve Manifold for zone-based water distribution. Following initial use of alternative fittings, the project adopted PP-H manifolds for the subsequent construction phase to improve material performance under the site's high-temperature outdoor conditions.

Factory & Project Support

We supply PP-H material certificates and ISO 14236-related test documentation for project review. Multiple sizes can be selected according to your site requirements. Shuoxin offers sample support, custom configuration and full technical documentation. Send us your pipe diameter, working pressure and irrigation zone layout for product selection and quotation.

FAQ

What is a Shuoxin 4 outlet cross manifold? It is a cross-shaped polypropylene compression manifold featuring one main inlet and three irrigation branches with integrated ball valve controls. It distributes water from one main inlet to multiple branches for zoned irrigation management.

How many irrigation zones can it control? It provides four independently controlled irrigation branches, allowing one main water supply to be divided into four irrigation zones.

What pipe does it connect to? It works with PE and HDPE pipes via barbed PP compression fittings.

Is PP-H available? Yes, PP-H homopolymer is the standard material for our Shuoxin manifold, with material certificates available.

What pressure rating does it support? It reaches PN16 nominal pressure at 20°C. Working pressure will reduce as operating temperature rises.

What connection ends does it use? It uses barbed spigot ends to connect with PE and HDPE irrigation pipes.

Can specifications be customized? Shuoxin supports size and accessory configuration adjustments to fit your irrigation project demands.

Shuoxin has manufactured PP compression cross irrigation manifolds from DN20 to DN110 since 2008. Our 75mm 4-Way Irrigation Valve Manifolds are manufactured with reference to applicable ISO 14236 requirements. Share your project parameters with our team to get a formal quotation within 48 hours.
