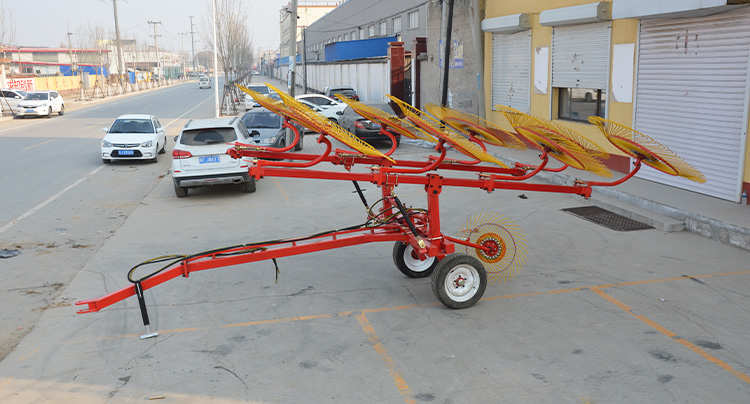

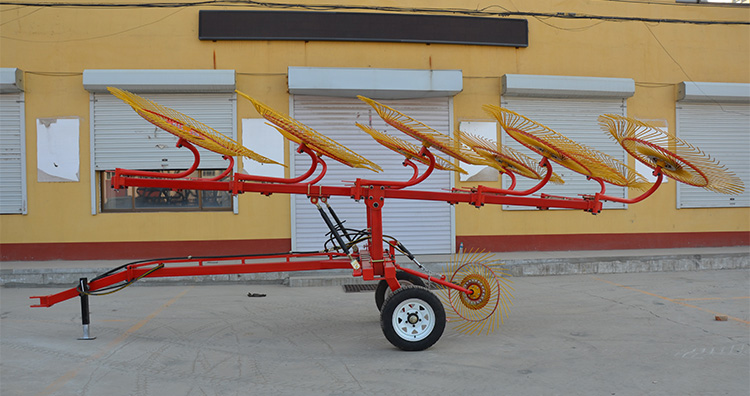

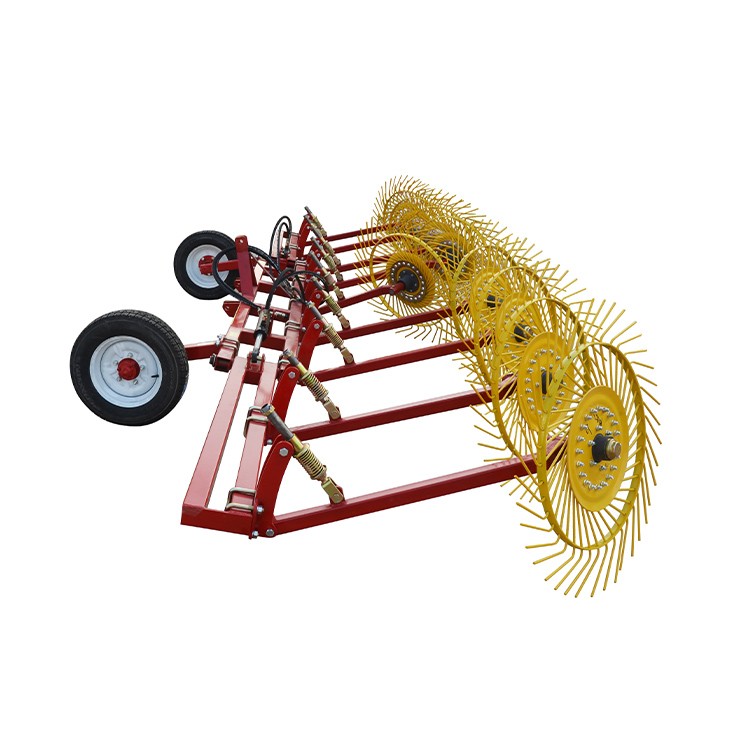

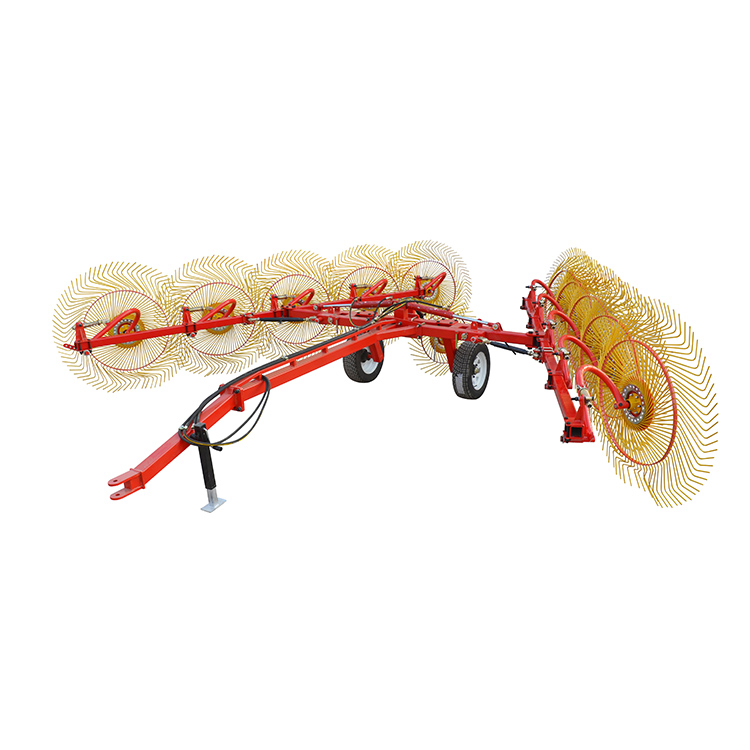

Tractor Wheel Rakes

The tractor wheel rakes are type of machinery used for harvesting grass that is scattered on the ground into long strips. The purpose of the hay harvester is to allow the grass to dry thoroughly and facilitate the collection of dry hay. According to the relationship between the direction of the hay strips and the forward direction of the machine,they can be divided into two main categories: horizontal and lateral. The integrated hay strips are parallel to the forward direction of the machine. The shape of the hay strips is neat, loose, and uniform. The movement distance of the grass is small, and there are few impurities, making it suitable for high-yield natural grasslands and artificial pastures.

The tractor wheel rakes are suitable for being attached to the three-point suspension device of a wheeled tractor. Its working components are finger discs with teeth. The machine transmits the force from the finger disc to the next one in sequence until a loose and ventilated grass strip is formed. Changing the angle of the finger disc can adjust the width of the grass strip. The teeth are long spring steel teeth with good shearing effect and strong shaping performance. The teeth are arranged radially on the hub, which can eliminate the influence of wind and facilitate the passage of dust. The pressure on the ground by the finger disc is controlled by a tension spring. The ground pressure can be adjusted by the stretching adjustment plate according to the crop and ground conditions.

They are compatible with the lawn mower produced by our factory. They can integrate the three grass strips formed by the cutting into a uniform one, which is convenient for subsequent baling operations.

If you need more basic information about the tractor wheel rakes, such as product overview, core functions, technical parameters, performance advantages, application scenarios, safety and maintenance, etc., please feel free to contact us. We will also provide you with a reasonable solution according to your needs.
