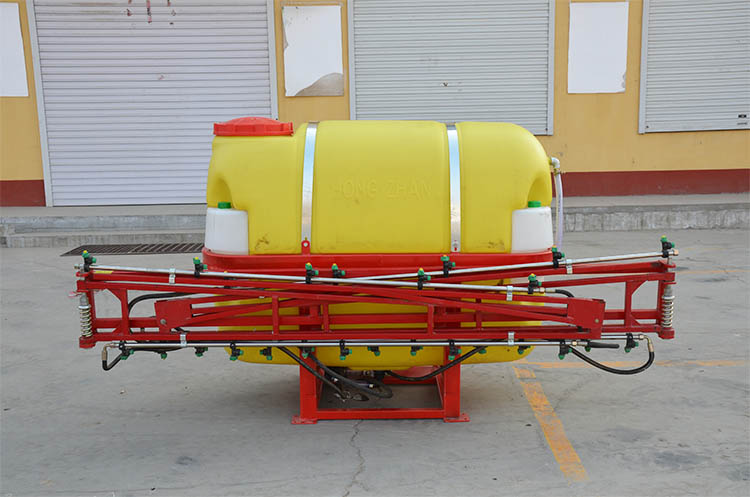

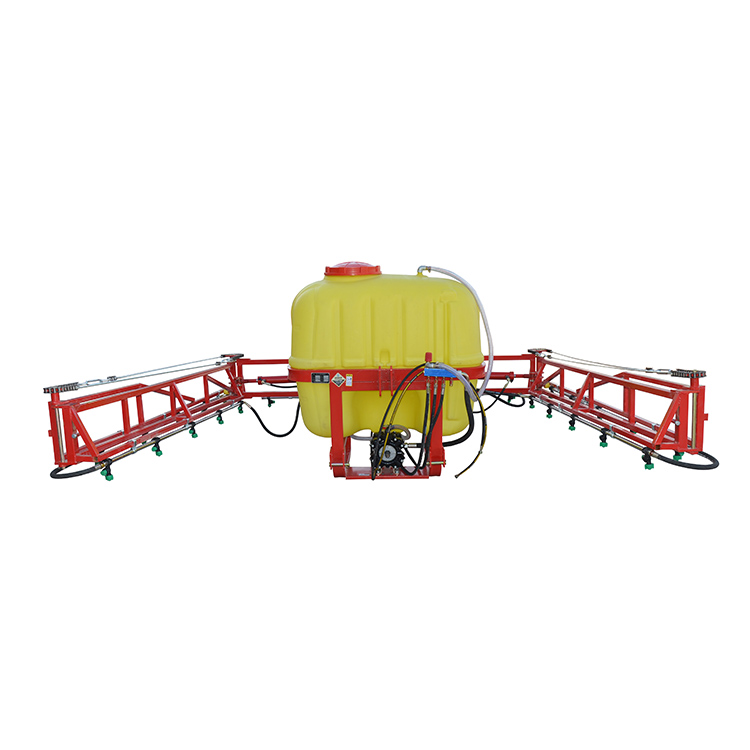

Mounted Agricultural Sprayer

The mounted agricultural sprayer is a type of agricultural machinery produced by Shuoxin® and is specifically designed for use with tractors. It is mainly used for spraying foliar fertilizers, herbicides, etc. It is powered by the tractor to achieve efficient spraying over a large area.

Send Inquiry

Product Description

The mounted agricultural sprayer is a device that integrates a large-capacity medicine tank, adjustable spray pole, high-pressure atomization system and intelligent control technology. It is widely used in fields of crops, orchards, vegetable bases and greenhouses, significantly improving the efficiency of pest control and the utilization rate of pesticides. It is an important mechanical equipment for large-scale cultivation and precision agriculture.

Product parameter

Model	3WPXY-600-8/12	3WPXY-800-8/12	3WPXY-1000-8/12	3WPXY-1200-22/24
Tank capacity(L)	600	800	1000	1200
Dimension(mm)	270033001400	310031001800	310033002100	420036002400
Horizonal range(M)	8/10/12	12/18	12/18	22/24
Working pressure	0.8-1.0mpa	0.8-1.0mpa	0.8-1.0mpa	0.8-1.0mpa
Pump	Diaphragm pump	Diaphragm pump	Diaphragm pump	Diaphragm pump
Matched Power(HP)	50	60	80	90
Rated Flow(L/min)	80-100	80-100	190	215

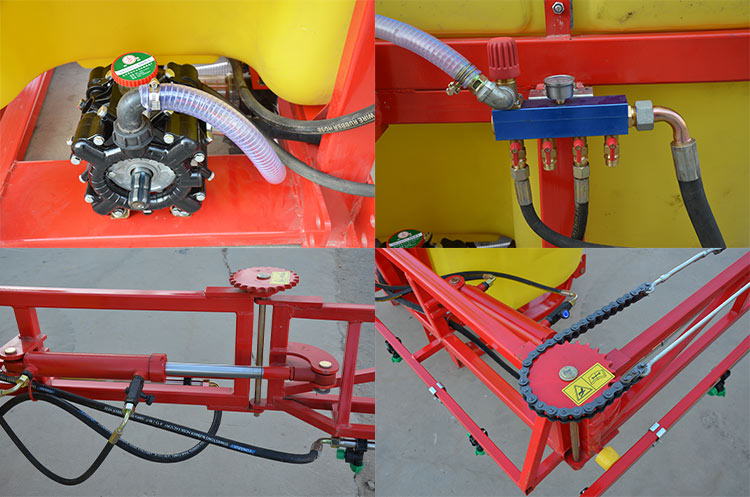

Structural Design

Suspension system: The mounted agricultural sprayer adopts a three-point connection method, suitable for various horsepower tractors. The installation is convenient and the stability is high.

Spray gun system Spray gun length: The length can be adjusted. The maximum working width can reach 12 meters, and it can be used to cover large areas of farmland.

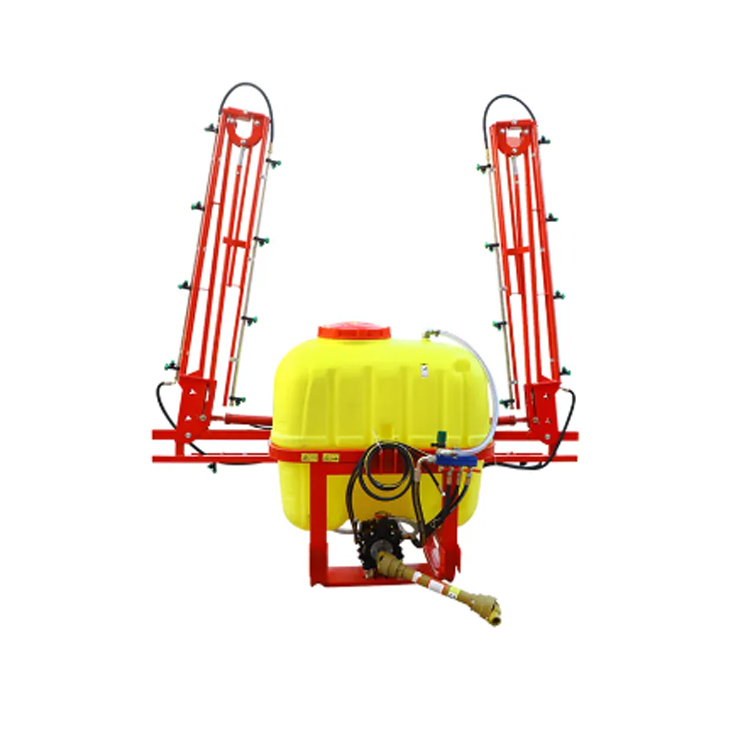

Spray head material: Made of high-strength aluminum alloy structure, equipped with hydraulic folding and lifting system, it is flexible to operate and has corrosion resistance.

Spray head configuration: The water mist sprayed out is fine, evenly distributed, and has strong penetration power.

Polyethylene drum

The capacity range of the box is from 400L to 1000L. Reducing the frequency of water addition can enhance the continuous operation capability and improve efficiency. And the material is corrosion-resistant and easy to clean.

Power system

Driven by the tractor's PTO, the rotational speed can be adjusted to match different working speeds.

The mounted agricultural sprayer can well meet the diverse needs ranging from small-scale farms to large-scale cultivation. It can help the agricultural sector reduce costs and increase profits, bringing many benefits to farmers.
