Flat Satellite Land Levellers

The flat satellite land levellers produced by Shuoxin® can better increase the yield compared with traditional leveling methods, ensuring a balanced distribution of crops. With outstanding technology and reliable quality, they provide reliable solutions for farmland land leveling for agricultural practitioners.

Send Inquiry

Product Description

Flat satellite land levellers are mainly used to level wasteland and slopes, reduce irrigation ditches, improve land utilization, and create conditions for mechanized operations. The flat satellite land levellers are mainly composed of a laser emitter and receiver, a control box, a hydraulic system, a flat blade and other parts. Its unique design keeps the motor grader level and unaffected by ground undulations, thus achieving an efficient farmland leveling effect. Through operation, the ground flatness error can be less than 2CM, and water can be saved by more than 30% compared with ordinary irrigation.

When the ground surface is uneven, irrigation often leads to an uneven distribution of water flow. Usually, one side overflows while the other side is not fully irrigated. However, once the ground was flattened by the flat satellite land levellers, this situation was greatly improved. This not only saves a lot of trouble, but also can effectively save water resources. According to statistics, leveled land can reduce irrigation water consumption by 30% to 50%.

Flat Satellite Land Levellers

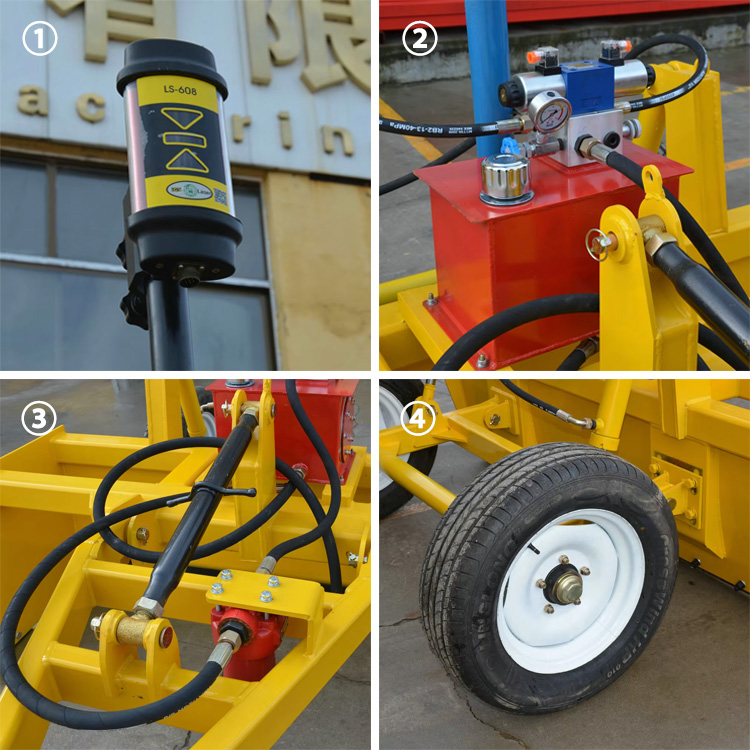

Details:

① Laser Receiver

② Control system

③ Hydraulic Control System

④ Heavy Duty Wheel

Flat Satellite Land Levellers

Parameter

Model	12PW-4.0	12PW-3.0A	12PW-2.8/3.5	12PW-2.5/3.2	12PW-2.5	12PW-1.5/2.2
Working Width	4	3	3.5	3.2	2.5	2.2
Control mode	STATELLITE CONTROL	STATELLITE CONTROL	STATELLITE CONTROL	STATELLITE CONTROL	STATELLITE CONTROL	STATELLITE CONTROL
Levelling shovel type	CAMBER BEAM ADJUSTABLE	CAMBER BEAM FIXED	STRAIGHT SHOVEL	STRAIGHT SHOVEL	STRAIGHT SHOVEL	STRAIGHT SHOVEL
Tyre size	10.0/75-15.3	31/15.5-15	10.0/75-15.3	10.5/75-15.3	10.0/75-15.3	23*8.50/12
Matched power	154.4-180.5	102.9-154.4	102.9-154.4	102.9-154.4	80.4-102.9	50.4-80.9
Working rate ha	0.533333333	0.33	0.4	0.33	0.266666667	0.233333333
Size	480026501700	430031201650	400029301350	400026141350	400026101350	265016001320
Weight	2600	1980	1480	1440	1150	1150

Product features:

Tight connection: The steel plates at the connection points are thickened and widened, making them strong and durable.

Small error: The hydraulic actuator brakes stably with small ground leveling error.

Strong signal: Enhanced satellite receiver, strong signal and no disconnection.

Tyre is sturdy: Thickened rubber tires are less likely to explode.

Good leveling effect: The flat satellite land levellers make the land more level, allowing crops to grow better.

Easy installation: Tractor-towed installation, it can be towed away in minutes.

As an advanced agricultural machinery, the flat satellite land levellers features high precision, large working radius, strong environmental adaptability, and saves labor and time. If you want to know more about the product parameters and specifications of the land leveling machine, please feel free to contact us and we will provide you with a reasonable solution.
