Are you a factory manufacturer?

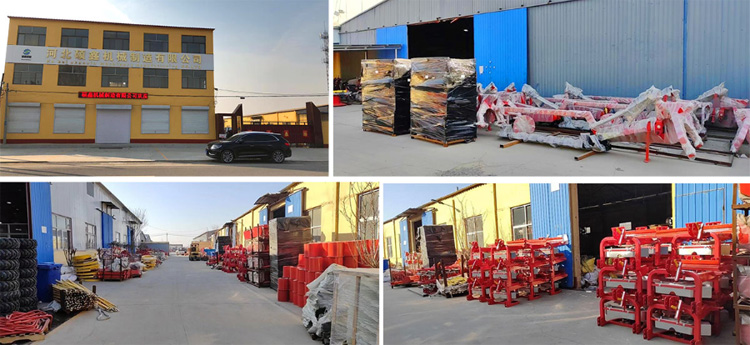

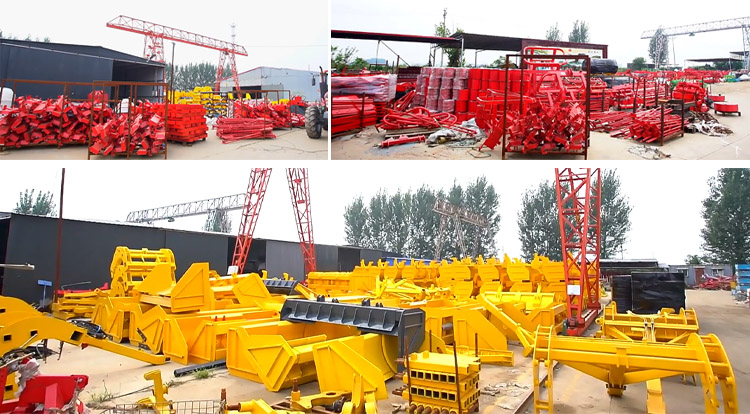

Shuoxin Machinery is the original manufacturer of agricultural machinery equipment products and a well-known manufacturer in China. Shuoxin Machinery is mainly engaged in production, sales, and export business. Its agricultural machinery and equipment products, such as Flat Satellite Land Levelers, meet international standards and are highly favored by domestic and overseas markets. Shuoxin Machinery has Over 20 years of industry experience,8 professional production lines, 36 R&D engineers, and over 400 employees. With advanced R&D and technical capabilities, it provides high-quality and high-performance satellite levelers and other products to the world.
What is Land Leveller and its uses?

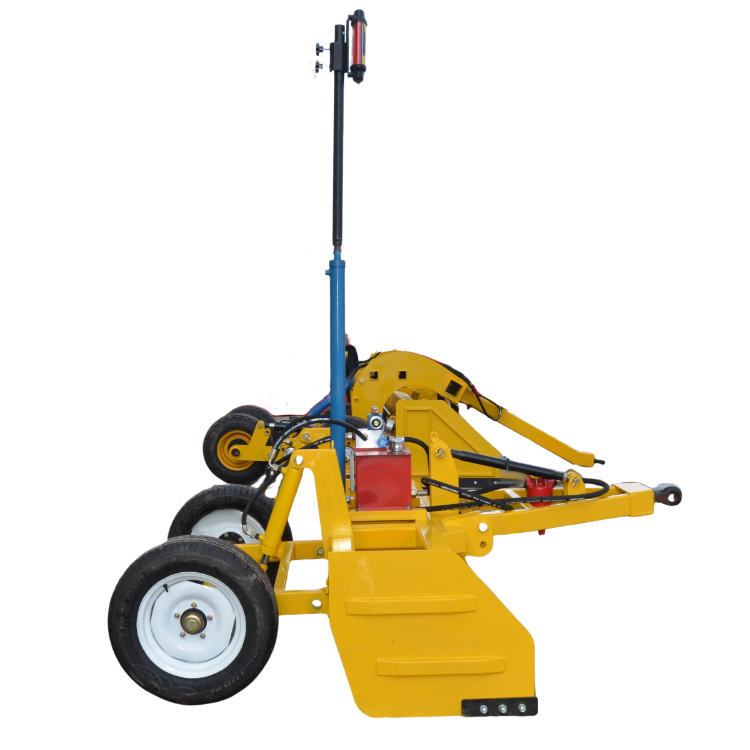

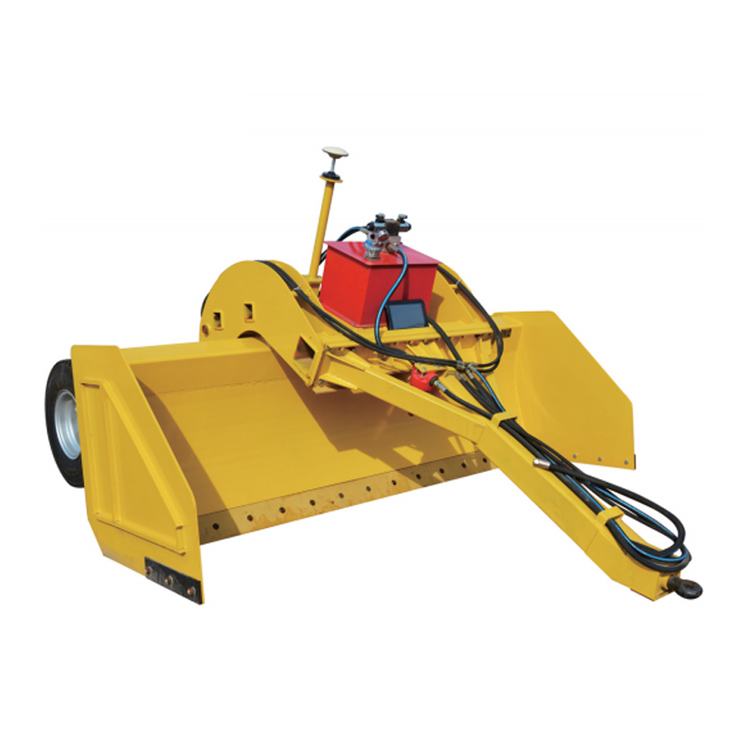

Flat Satellite Land Levelers are precision agricultural production tool that uses satellite positioning technology to level uneven fields or sites through GPS signals, thereby achieving the goal of land leveling.
What is the working principle?
The Flat Satellite Land Levelers receives GPS signals from the transmitter, scans the ground, and forms a virtual light plane. The receiver installed on the leveling bucket detects the position of the GPS reference plane and sends a signal to the control box. The control panel interprets the signal and opens or closes the hydraulic control valve to raise or lower the bucket to achieve the desired slope and level the ground.
Model |
12PW-4.0 |
12PW-3.0A |
12PW-2.8/3.5 |
12PW-2.5/3.2 |
12PW-2.5 |
12PW-1.5/2.2 |
Working Width |
4 | 3 | 3.5 | 3.2 | 2.5 |
2.2 |
Control mode |
STATELLITE CONTROL |
STATELLITE CONTROL |
STATELLITE CONTROL |
STATELLITE CONTROL |
STATELLITE CONTROL |
STATELLITE CONTROL |
Levelling shovel type |
CAMBER BEAM ADJUSTABLE |
CAMBER BEAM FIXED |
STRAIGHT SHOVEL |
STRAIGHT SHOVEL |
STRAIGHT SHOVEL |
STRAIGHT SHOVEL |
Tyre size |
10.0/75-15.3 |
31/15.5-15 |
10.0/75-15.3 |
10.5/75-15.3 |
10.0/75-15.3 |
23*8.50/12 |
Matched power |
154.4-180.5 |
102.9-154.4 |
102.9-154.4 |
102.9-154.4 |
80.4-102.9 |
50.4-80.9 |
Working rate ha |
0.533333333 |
0.33 |
0.4 |
0.33 |
0.266666667 |
0.233333333 |
Size |
4800*2650*1700 |
4300*3120*1650 |
4000*2930*1350 |
4000*2614*1350 |
4000*2610*1350 |
2650*1600*1320 |
Weight |
2600 |
1980 |
1480 |
1440 |
1150 |
1150 |
What are the characteristics of satellite graders?
1. High positioning accuracy:
Our Flat Satellite Land Levelers adopts satellite positioning technology, which can accurately grasp information such as the shape, size, and slope of the land, accurately locate the work area and route, and achieve centimeter level leveling accuracy of ± 2.5 centimeters.
2. High homework efficiency:
Flat Satellite Land Leveller has functions such as autonomous navigation, automatic walking, and automatic turning, which can automatically perform tasks, reduce manual operation and consumption, and improve production and work efficiency.
3. Strong versatility:
One machine is versatile. Our Flat Satellite Land Levelers can not only complete the task of leveling the land, but also perform various agricultural operations such as plastic film covering, plowing, and sowing.
What are the advantages?
Save labor:
Reduced manpower demand and lowered labor costs.
High yield and water-saving:
This advanced technology enables machines to level the surface of fields to an average height with the required slope, thereby achieving better agricultural practices, higher crop yields, efficient crop management, and water conservation.
Improving agricultural production efficiency:
Helps to improve land use efficiency and crop growth conditions, thereby increasing the yield and quality of agricultural products
What are the application scenarios of satellite graders?

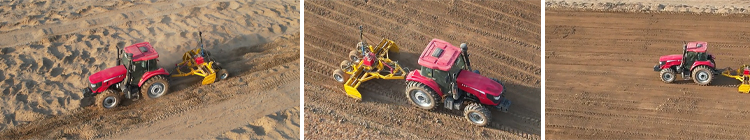

Flat Satellite Land Levelers are widely used in various aspects of agricultural land leveling, mulching, crop planting, and harvesting. With the upgrading of agricultural consumption and the increase in labor costs, the advantages of automation and high-efficiency production have become more prominent.
What are the model parameters of satellite Land Levellers?
Our Flat Satellite Land Levelers come in a complete range of models and support customization. Please consult us immediately for more product information, and we will select and recommend a suitable solution for you based on your actual situation.
