Product Description

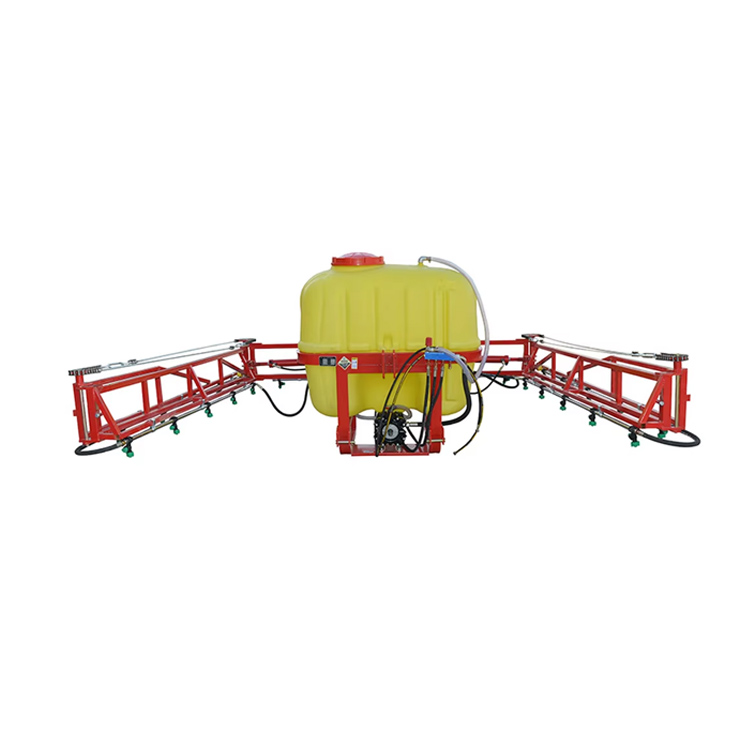

High quality 3 point boom sprayer is offered by China manufacturer Shuoxin. The 3 point boom sprayer is an efficient and versatile agricultural spray equipment. It is mainly connected with a three-point suspension device of a tractor or other power machinery to achieve large-area, high-efficiency spraying of agricultural substances such as pesticides, fertilizers and fungicides.


Product parameter

Model
3WPXY-600-8/12
3WPXY-800-8/12
3WPXY-1000-8/12
3WPXY-1200-22/24
Tank capacity(L)
600
800 1000 1200
Dimension(mm)
2700*3300*1400
3100*3100*1800
3100*3300*2100
4200*3600*2400
Horizonal range(M)
2008/10/12
12/18
12/18
22/24
Working pressure
0.8-1.0mpa
0.8-1.0mpa
0.8-1.0mpa
0.8-1.0mpa
Pump
Diaphragm pump
Diaphragm pump
Diaphragm pump
Diaphragm pump
Matched Power(HP)
50
60 80 90
Rated Flow(L/min)
80-100
80-100/190
190 215




Working principle

Preparation stage: the pesticide, chemical fertilizer and other liquid substances are mixed with water in a certain proportion, and then loaded into the liquid medicine tank.

Start-up stage: Start the tractor and fix the sprayer to the rear of the tractor through a three-point suspension. At the same time, start the liquid pump, so that the liquid in the pipeline to form pressure.

Spraying stage: In the process of the tractor, the liquid pump pumps the liquid to the spray rod, and the nozzle atomizes the liquid to spray the crop surface. By adjusting the Angle and flow rate of the nozzle, uniform and efficient spraying operation can be achieved.


Product use

The 3 point boom sprayer is a hydraulic sprayer equipped with a boom and a horizontal or vertical spray rod. Driven by tractors and other power machinery, it is widely used in disease and pest control, leaf fertilizer spraying and herbicide use of crops such as dry fields, cotton fields, wheat fields and corn fields.


The 3 point boom sprayer is an efficient and reliable spray equipment, which is widely used in industrial and agricultural production fields. If you are looking for a cost-effective, easy-to-use 3-point sprayer with excellent results, please contact us!




Forward Boom type

Forward arms type booms fit for bigger working width such as 12M, 18M, 22M, 24M.


Raising arms type

Raising arms type booms fit for normal working width such as 8M, 10M, 12M.
