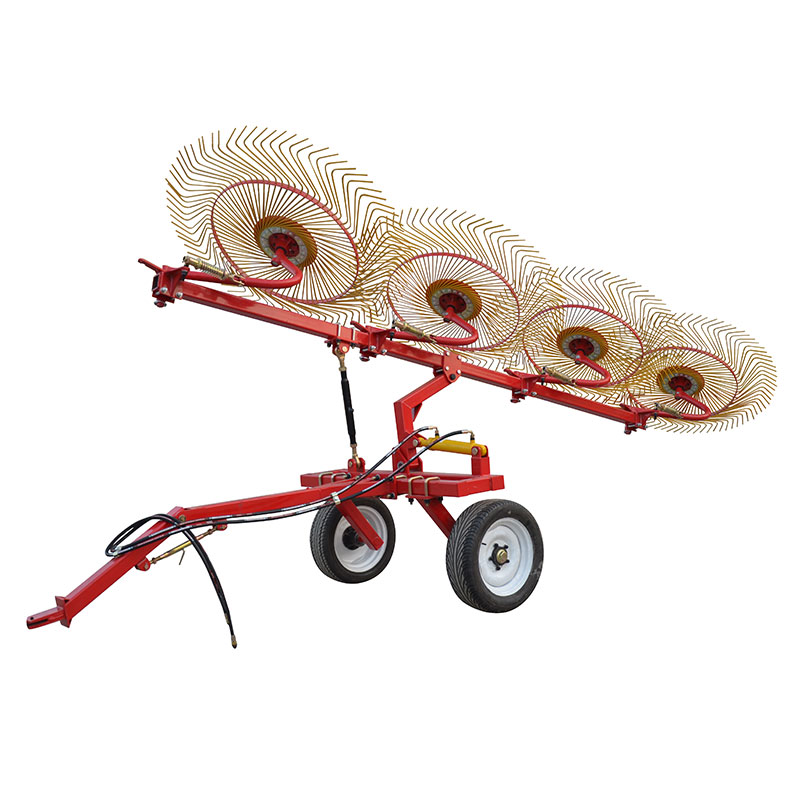

What Are the Main Components of a Single Side Wheel Rake?

A single side wheel rake is an essential tool in modern agriculture, particularly for haymaking and other crop management tasks. Designed for efficiency and simplicity, this rake uses a series of wheels to gather and arrange crop material into neat windrows, making collection and baling easier. To fully appreciate its functionality, it is crucial to understand the main components of a single side wheel rake and how they work together.

What Are the Main Components of a Single Side Wheel Rake?

1. Raking Wheels

The raking wheels are the core of the single side wheel rake. These wheels are equipped with spring tines or teeth that comb through the crop material, gathering it into a windrow. Key features include:

- Tine Flexibility: The tines are designed to be gentle on the crop, minimizing leaf loss and damage.

- Angled Positioning: The wheels are arranged at an angle, allowing them to create a continuous flow of material toward the windrow.

2. Frame or Chassis

The frame serves as the backbone of the rake, providing support and structure. It typically includes:

- Durable Materials: Built from steel or other sturdy materials to withstand heavy use.

- Adjustable Design: The frame often includes mechanisms to adjust the angle or height of the wheels, enabling customization for different crops and field conditions.

3. Wheel Support Arms

Each raking wheel is mounted on a support arm, which:

- Absorbs Shock: Designed to handle the vibrations and shocks from uneven terrain.

- Ensures Proper Alignment: Keeps the wheels in the correct position for effective raking.

4. Hitching Mechanism

The hitching mechanism connects the rake to a tractor or other towing vehicle. This component ensures smooth operation by:

- Facilitating Easy Attachment: Compatible with standard hitching systems.

- Providing Stability: Ensures the rake stays aligned with the tractor during operation.

5. Ground Wheels

Separate from the raking wheels, the ground wheels support the entire implement and allow it to move smoothly over the field. They:

- Bear Weight: Distribute the weight of the rake evenly to avoid soil compaction.

- Enable Maneuverability: Make it easy to navigate different field terrains.

6. Adjustment Mechanisms

Most single side wheel rakes include various levers, knobs, or hydraulic systems to adjust settings. These mechanisms:

- Control Raking Width: Allow operators to change the size of the windrow.

- Modify Wheel Pressure: Adjust the pressure of the raking wheels on the crop for optimal results.

7. Windrow Forming Shield

Some single side wheel rakes are equipped with a shield or deflector that helps shape the windrow. This ensures:

- Consistent Windrows: Helps create uniform rows for easier baling.

- Improved Efficiency: Reduces the need for additional passes.

8. Hydraulic or Manual Controls

Depending on the model, the rake may feature hydraulic or manual controls to adjust the rake’s operation. These controls:

- Enhance Precision: Allow fine-tuning of settings for different field conditions.

- Improve Convenience: Enable adjustments without stopping the tractor.

How These Components Work Together

The single side wheel rake operates through the coordinated functioning of these components:

1. The tractor’s hitching mechanism pulls the rake across the field.

2. The ground wheels maintain stability and ensure smooth movement.

3. As the rake moves, the raking wheels’ tines collect the crop material, gathering it into the desired windrow width.

4. The support arms and adjustment mechanisms keep the wheels at the ideal height and angle for efficient raking.

5. The windrow forming shield shapes the collected material into neat, consistent rows.

The single side wheel rake is a marvel of simplicity and efficiency, with each component playing a critical role in its operation. By understanding how these parts function together, operators can maximize the rake’s performance, ensuring cleaner fields and better-quality windrows.
